500W CNC Spindle Air Cooled Motor ER11 ER16 Collet Chuck 0.5KW Adjustable 48V Power Supply Governor for DIY CNC Router Engraver

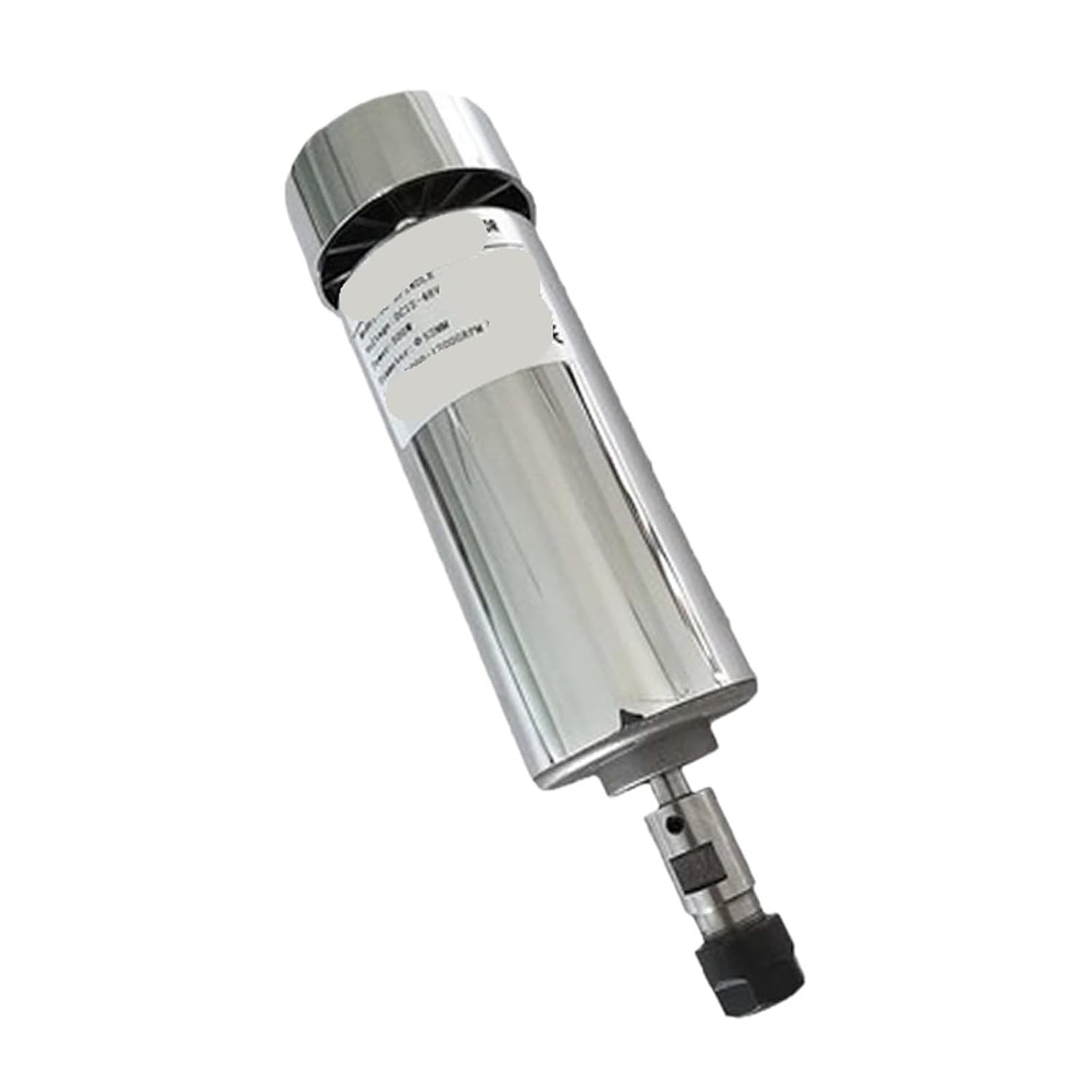

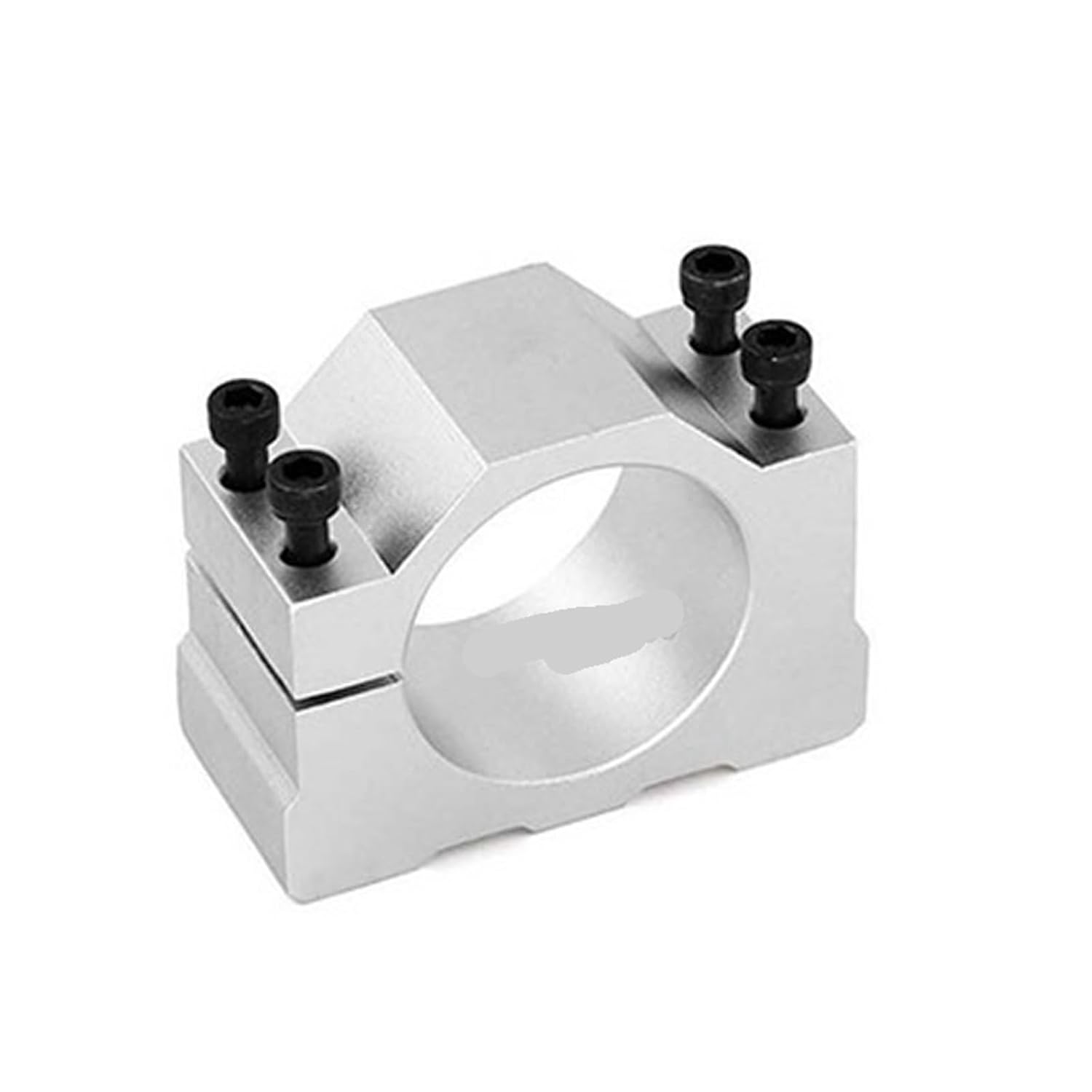

500W CNC Spindle Air Cooled Motor ER11 ER16 Collet Chuck 0.5KW Adjustable 48V Power Supply Governor for DIY CNC Router Engraver1. Spindle motor:Spindle motor: brushed DC motorWorking voltage: 12-48VDC (direct current)Power: 500WSpeed: 3000-12000r/min (12V-3000 revolutions, 24V-6000 revolutions, 36V-9000 revolutions, 48V-12000 revolutions)Torque: 500mN.mInsulation resistance: >2 megohmInsulation dielectric strength: 400VDiameter: 52mmThe length of the chuck part: 35mm of the shank, (including the nut and the core 43mm)Diameter of the chuck part: 16mmThe total length of the motor: 205mm (including the clamping part and the motor)Spindle net weight: 1KGThe radial runout of the spindle is about 0.01-0.04.Can be used to engrave materials such as metal or non-metal.This spindle is equipped with forced air cooling and can work for a long time.2. Power supply:voltage converter switching power supply for mechanical motorsInput: AC220V±10% 50/60HzOutput: DC 48VAdapter power: 500WThis power regulator can adjust 110/220V according to customer needs3. 52mm spindle clamp seat:52mm mounting bracket + 4 screwsDiameter: 52mmMaterial: Aluminum4. 9V-60V 10A DC motor governor pulse width modulator PWM control switch governorOrigin : Mainland ChinaDrive : MotorMaximum Torque : 500mN.mOperating Speed : 3000-12000r/minModel Number : 500W Spindle Motor KitApplication : MillingDiameter : 52mmInput : AC220V±10% 50/60Hz

• YZHATDH 500W CNC Spindle Air Cooled Motor ER11 ER16 Collet Chuck 0.5KW Adjustable 48V Power Supply Governor for DIY CNC Router Engraver
