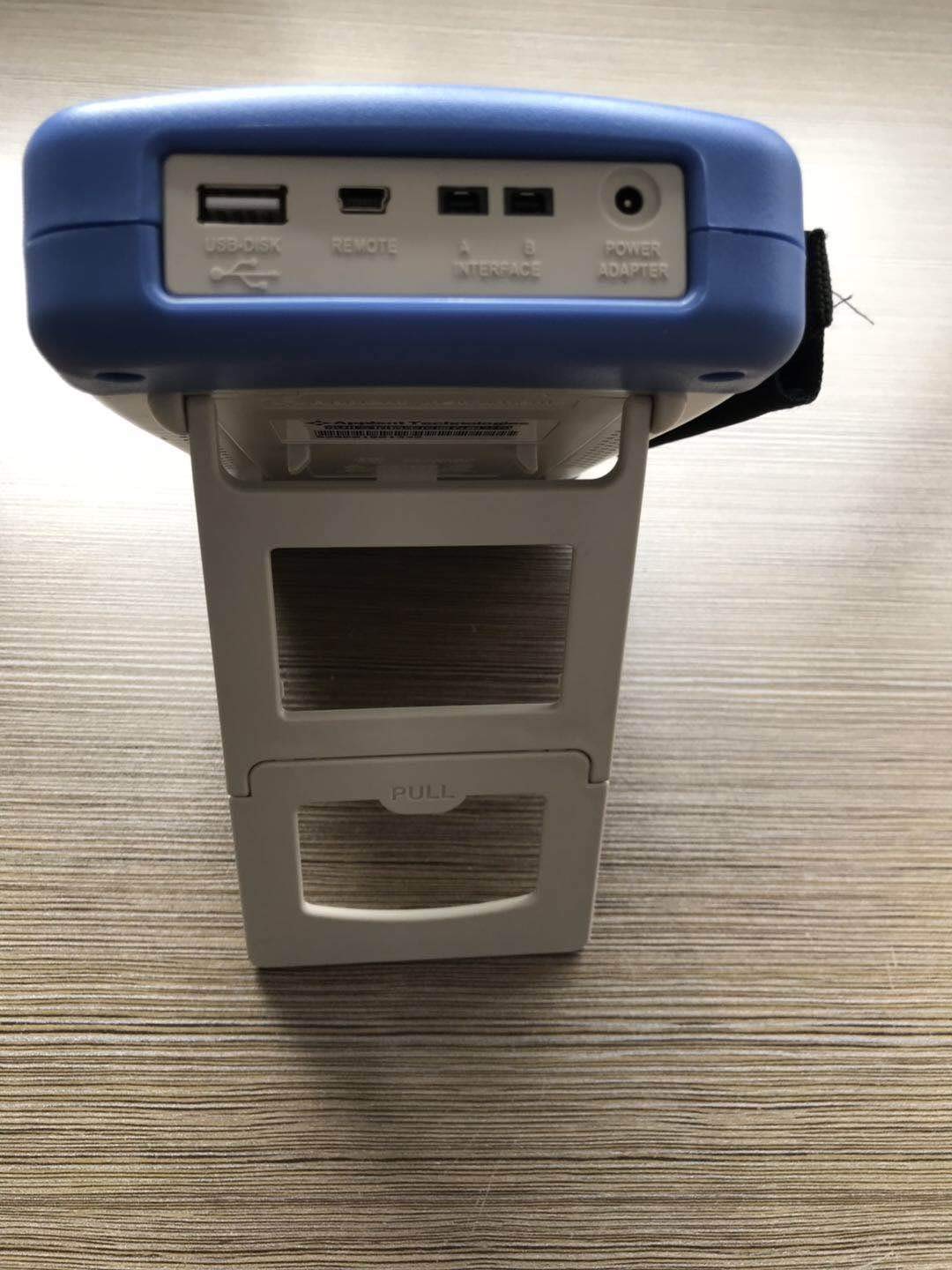

AT525D Battery Tester for UPS Online Test High Voltage, 0.0001V~200.000VDC
Product details
| Management number | 212399597 | Release Date | 2026/04/06 | List Price | $580.00 | Model Number | 212399597 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
AT525/AT525D/AT528/AT528L handheld battery tester adopt high-performance 32dgt ARM micro processor, can be used to test voltage and internal resistance of battery, it is upgrade version of AT528, it is applied to UPS online measurement. Test the resistance 0.001mΩ – 3.3kΩ, 0.0001V - 60V DC voltage with the resistance max reading of 3300dgt and voltage 60,000dgt. The indication beat is controlled under 5 digits. AT525/AT525D/AT528/AT528L can test open-circuit voltage accurately, adding automatic sorting function and beep set, is applied to automatic sorting system to complete production line test. Equipped with USB interface, can be used for remote control, data acquisition and analysis. It is suitable for flow line inspect of storage batteries.
- battery tester, battery internal resistance meter, AC low ohmmeter
| Brand Name | anbai |
|---|---|
| Manufacturer | anbai |
| Power Source | Battery Powered |
| Measurement Type | Ohmmeter |
| Specification Met | Beep |
