6.3"/160mm Cutting Diameter 90 Degree 8 Flute Indexable CNC Face End Mill Shell Cutter BAP400R 160-40-8T, Shank Face End Mill Arbor R8-FMB40 7/16-20 with 20Pcs APMT1604 Carbide Inserts and T15 Wrench

Specification:Milling Cutter: 400R-160-40-8T, 8 Flute, 6.3in/160mm Cutting Diameter, 90°CutterFace Mill Arbor: R8-FMB40, 1.58In/40mm Bore Diameter, 7/16-20 Draw Bar ThreadsCarbide Insert: APMT1604 Cemented Carbide InsertPackage included:1 x R8 FMB40 Arbor1 x BAP400R 160-40-8T1 x T15 Wrench20 x APMT1604 Carbide Inserts as picturedFeatures:90° indexable milling cutter, matching with standard APMT1604 insertMade of steel with high hardness and strength to ensure long service lifeHigh vibration-absorbing performance, improve the surface finish of the workpieceSet including R8 face mill arbor with 40mm bore for holding milling cutterSet including 20pcs APMT1604 inserts, great for shoulder milling, face milling and slotting, can fit a variety of materialsNote:During milling, the stress points are along the direction of rotation of the milling cutter, and the downward force is small, and the product is not easy to deform when milling thin strip products

• 𝟒𝟎𝟎𝐑-𝟏𝟔𝟎-𝟒𝟎-𝟖𝐓 𝐅𝐚𝐜𝐞 𝐄𝐧𝐝 𝐌𝐢𝐥𝐥 𝐂𝐮𝐭𝐭𝐞𝐫: 6.3in/160mm Cutting Diameter, 8 Flutes, 1.57In/40mm Bore Diameter.
• 𝐑𝟖 𝐅𝐌𝐁𝟒𝟎 𝐀𝐫𝐛𝐨𝐫: 7/16-20 Draw Bar Threads, 1.57In/40mm Bore Diameter.
• 𝐀𝐏𝐌𝐓𝟏𝟔𝟎𝟒 𝐂𝐚𝐫𝐛𝐢𝐝𝐞 𝐈𝐧𝐬𝐞𝐫𝐭: 85°Nose Angle Parallelogram, 11°Relief Angle. Suitable for turning and finishing of steel, stainless steel, cast iron and non ferrous materials.

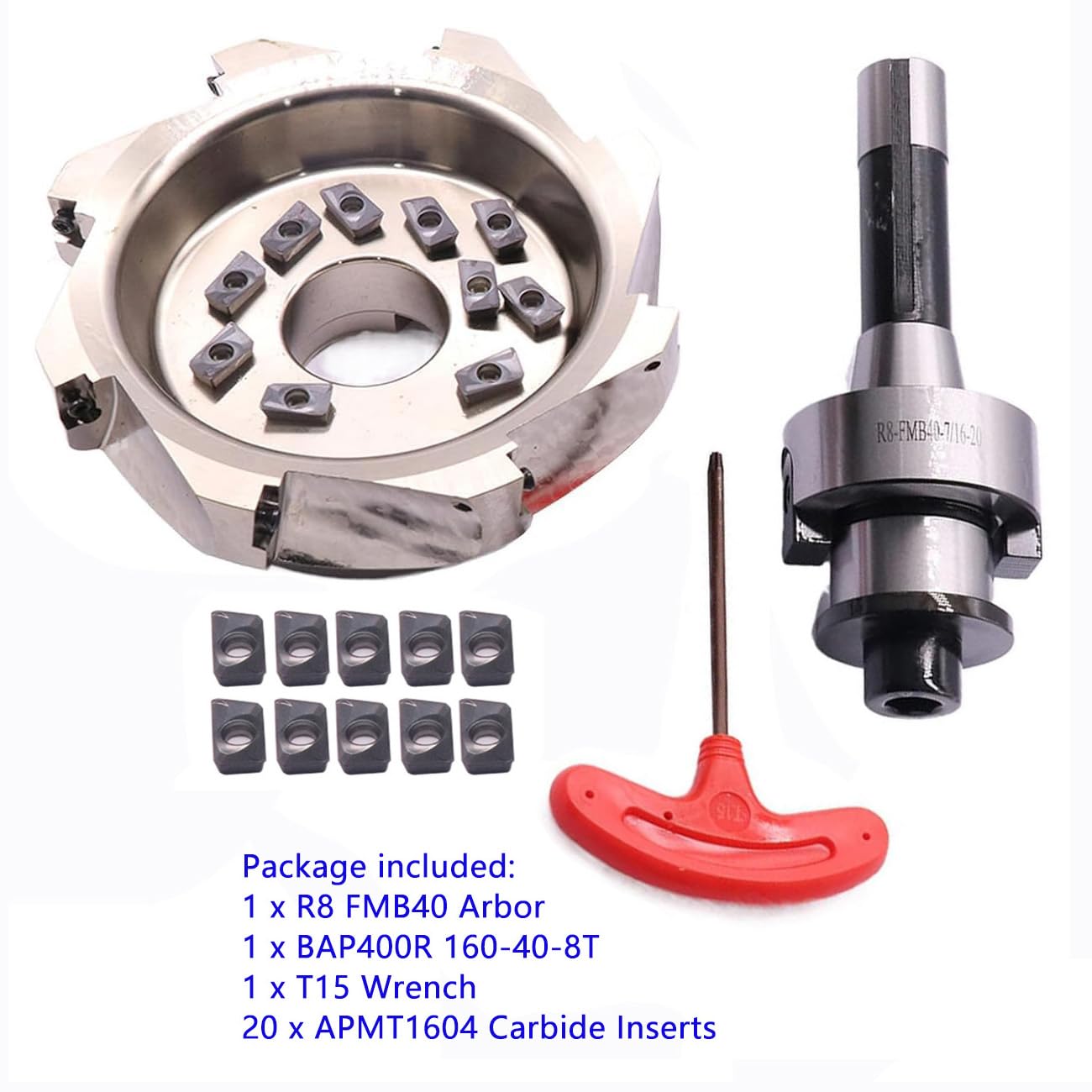

• 𝐒𝐞𝐭 𝐢𝐧𝐜𝐥𝐮𝐝𝐞𝐬: 1 x R8 FMB40 Arbor, 1 x 400R-160-40-8T Cutter, 1 x T15 Wrench, 20 x APMT1604 Carbide Inserts as pictured.
• 𝐅𝐮𝐧𝐜𝐭𝐢𝐨𝐧: Machining planes, grooves, and cutting off workpieces on milling machines. Milling speed and processing efficiency are high, and the surface quality of the processing is also good.
• 𝐅𝐞𝐚𝐭𝐮𝐫𝐞𝐬: The rigid wire connection and screw offset fastening design make the slot of the blade and the blade closely fit, and the machining effect is good
• 𝐇𝐢𝐠𝐡 𝐐𝐮𝐚𝐥𝐢𝐭𝐲: Made of fine quality steel, good permeability,sturdiness and durability, resistance to multiple impacts,fine durability. Smooth surface, comfortable feeling, nice appearance.
• 𝐆𝐨𝐨𝐝 𝐏𝐞𝐫𝐟𝐨𝐫𝐦𝐚𝐧𝐜𝐞: Milling rotary tool is screw locking, the chip large space, good chip removal, edge can fit a variety of materials.
• 𝐖𝐢𝐝𝐞𝐥𝐲 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐭𝐢𝐨𝐧: It is mainly used for machining plane, groove and cutting workpiece on milling machine, with good milling speed, machining efficiency and machining effect.
